General Description

The G2225 provide a complete power supply solution for wearable / sports-cam & IP-CAM application. It contains four dc/dc converters, one power switch and one low quiescent current LDO to power each critical blocks of the system, and is optimized for maximum battery life, featuring a low ground current when in standby mode operation. All channels DC/DC converters operate at selectable frequency of 1.5/3.0MHz to optimize size, cost, and efficiency. All Synchronous converters operate at pulse skipping mode at light load.

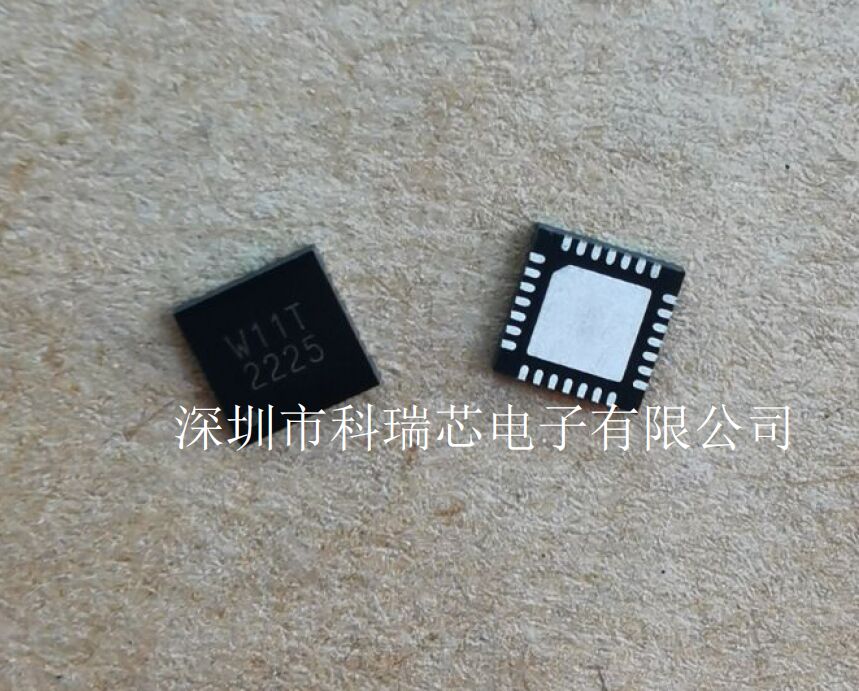

The G2225 is available in TQFN4x4-28 package.

Features

■ 2.8V ~ 5.5V Input Voltage Operation.

■ 95% Efficient DC/DC Converter

■ Built-in 4-ch synchronous buck converter, 1-ch power switch, and 1-ch low quiescent current LDO for RTC.

■ Bucks can be set to lower quiescent current at low load.

■ Low Power consumption (Sleep Mode) < 20μA.

■ 1.5/ 3MHz switching frequency.

■ Built-In Power ON/OFF Sequence for PMU.

■ Built-In Short Circuit Protection (SCP), Under Voltage Protection (UVP), and cycle-by cycle current limit for DC/DC Converters.

■ Real Time Clock

■ Built-In Thermal Shutdown Function.

■ Built-In VCC OVP Function.

■ TQFN4x4-28 Package.

Applications

■ Wearable/Sports camera

■ IP camera

■ DSC
