General Description

The G914X is a low supply current, high PSRR low dropout linear regulator that comes in a space saving SOT-23-5 package. The supply current at no-load is 55μA. In the shutdown mode, the maximum supply current is less than 1μA. Operating voltage range of the G914X is from 2.5V to 5.5V. The over-current protection limit is set at 500mA typical and 400mA minimum.

An over- temperature protection circuit is built-in in the G914X to prevent thermal overload. These power saving features make the G914X ideal for use in the battery-powered applications such as notebook computers, cellular phones, and PDA’s.

Features

■ Ultra Low Output Noise⎯30μV (rms)

■ Ultra Low 55μA No-Load Supply Current

■ Ultra Low Dropout 70mV @ 50mA Load

■ Guarantee 300mA Output Current

■ Over-Temperature and Short-Circuit Protection

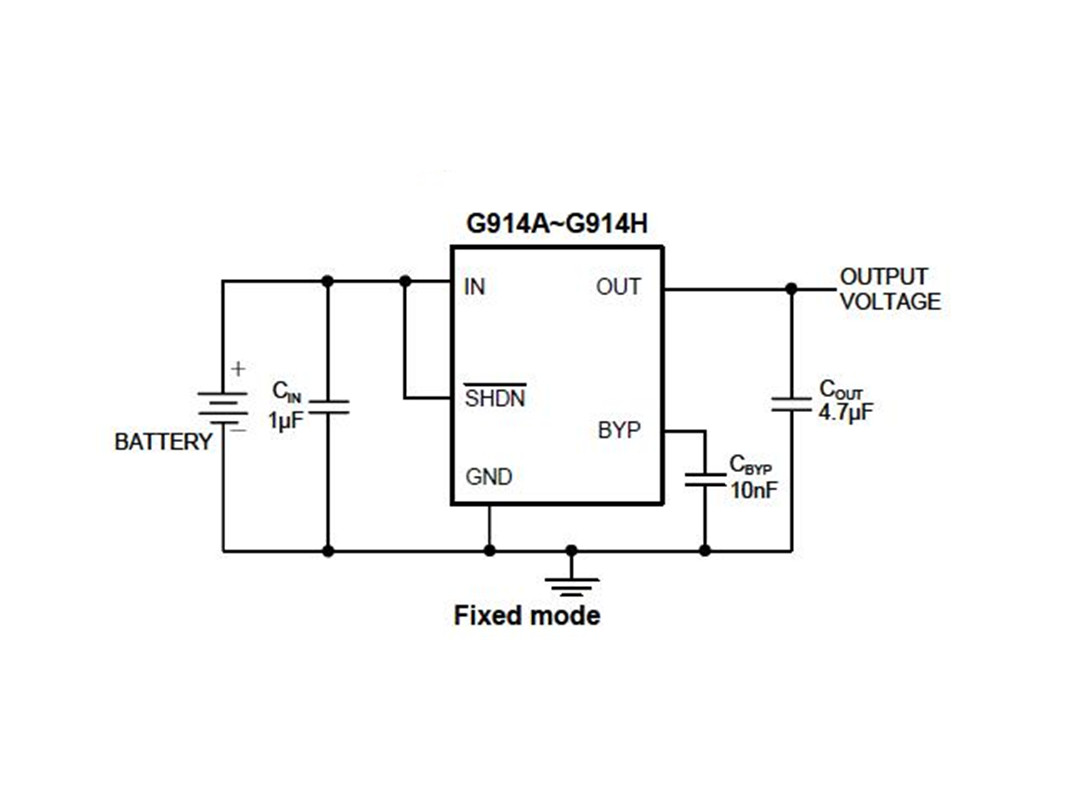

■ Fixed Mode: 2.70V (G914A), 2.80V (G914B)

3.00V (G914C), 3.30V (G914D)

2.50V (G914E), 2.85V (G914F)

1.50V (G914G), 1.80V (G914H)

■ Adjustable Mode: from 1.25V to 5.50V (G914Z)

■ PSRR=70dB

■ Max. Supply Current in Shutdown Mode < 1μA

■ Stable with low cost ceramic capacitors

Applications

■ Notebook Computers

■ Cellular Phones

■ PDA

■ Hand-Held Devices

■ Battery-Powered Application
