General Description

The G1632 consists of 14+1 channel buffers target toward the needs of thin film transistor liquid crystal display (TFT LCD). This device incorporates one Vcom buffer and 14 gamma buffers, and are programmed through I2C interface. It contains two register banks which can store two different sets of gamma reference values. Each buffer is capable of driving heavy capacitive loads and offering large current loading (Vcom: 100mA, Gammas: 25mA).

The G1632 is available in the QFN5X5-32 package.

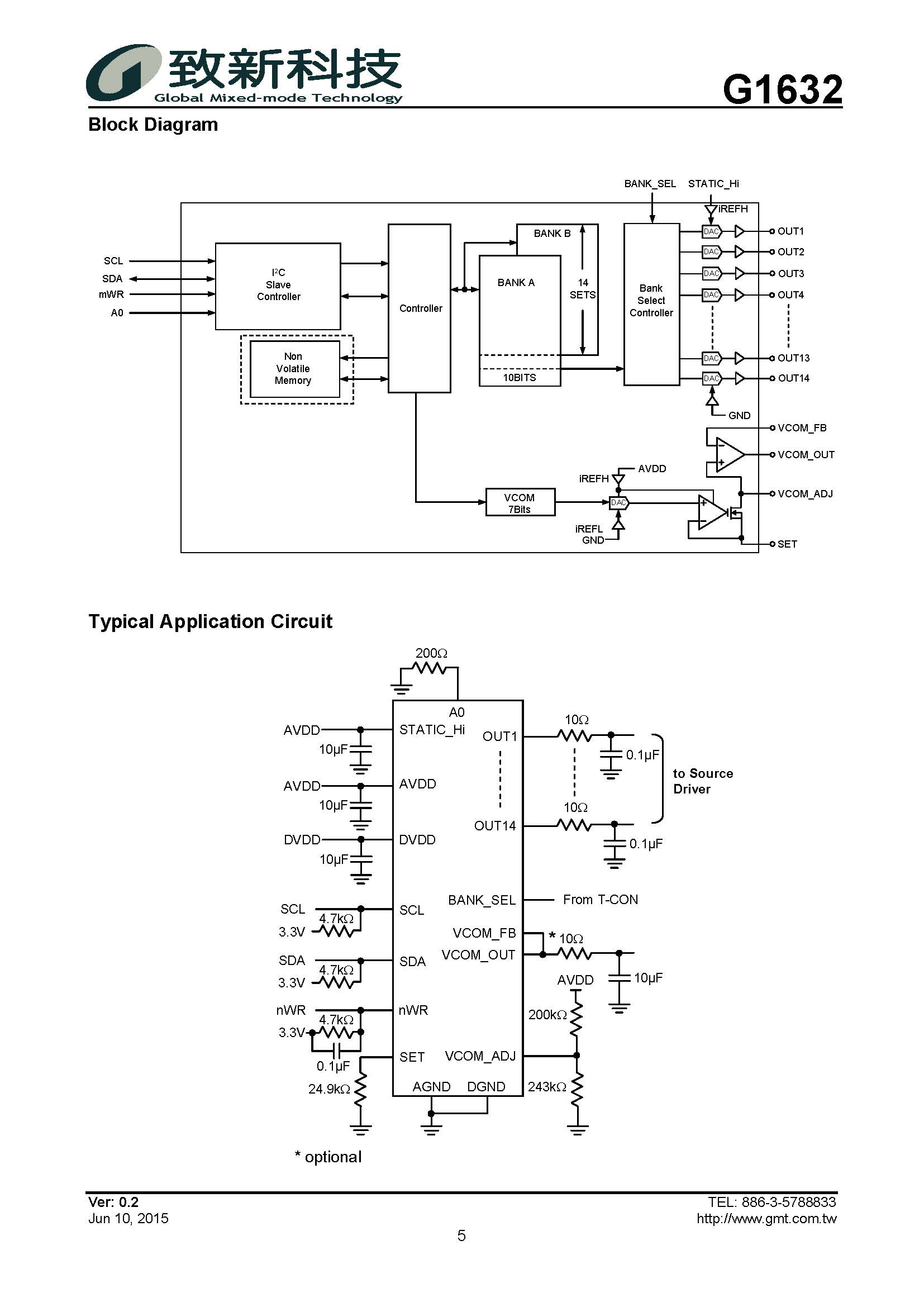

Features

■ Supply Operation Range : 6.5V to 18V

■ 14+1 Channels :

--- 14 Channel Rail-to-Rail Programmable Gamma Buffers

■ 10 bits Resolution for each Channel

■ 25mA Output Current for each Channel

■ 2 Banks Registers Using Bank_Sel to Select which Bank Data Output

---1 Channel Rail-to-Rail Vcom Buffer:

■ 7 Bits Adjustable Output

■ ±100mA Output Current

■ ±260mA Output Short-Circuit Current

■ 20V/μs Slew Rate

■ 2-Wire I2C Slave Mode Interface

■ Using One Control Pin Enable to Store Data into Non-Volatile Memory (NVM)

■ Non-Volatile Memory (NVM) Store Setting (at Least 100 Re-Write Times)

■ QFN5X5-32 Package

Applications

■ TFT-LCD Monitors

■ LCD Televisions
