型号: | G9103-150TO1U |
厂 商: | 中国台湾 |
品牌/商标: | GMT/致新 |
产品类别: | GMT- |
联系人: | 颜先生/William |
电话: | 0755-82170220,21001680 |
General Description

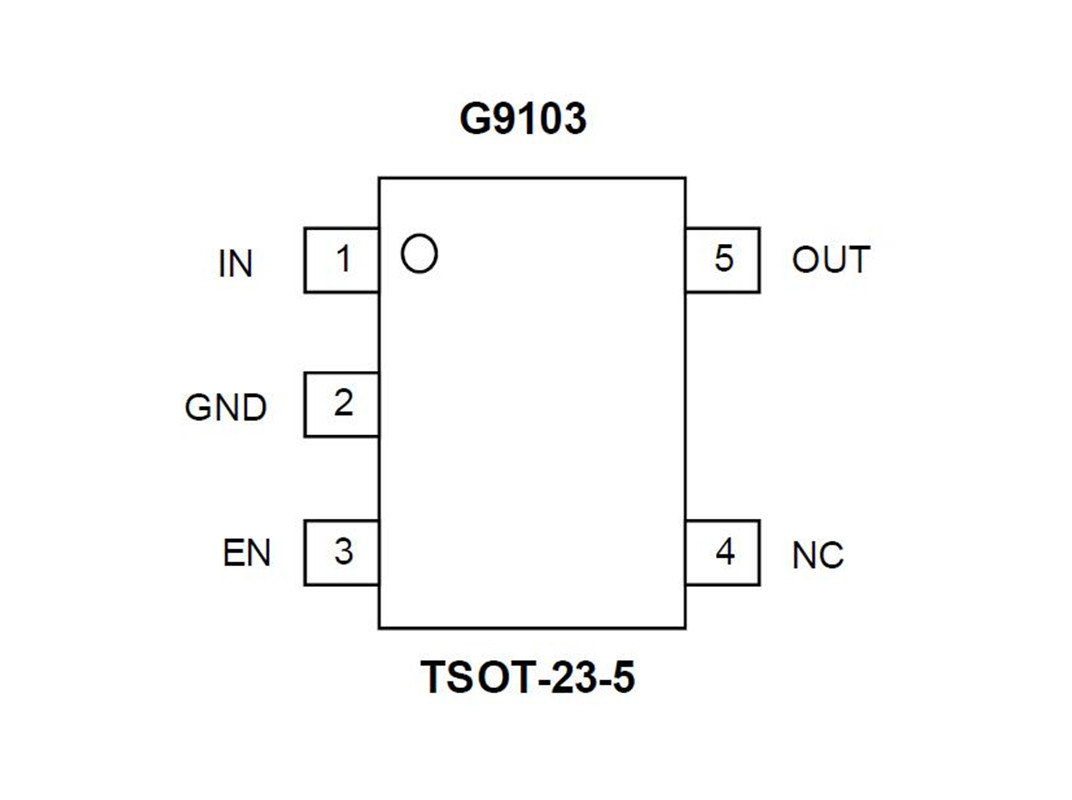

The G9103 is a low supply current, low dropout linear regulator that comes in a space saving TSOT-23-5, package. An over-temperature protection circuit is built-in in the G9103 to prevent thermal overload. These power saving features make the G9103 ideal for use in the battery-powered applications such as notebook computers, cellular phones, and PDA’s.
These devices feature a shutdown function and are offered in active low with auto discharge. The G9103 is specifically designed to employ ceramic output capacitors. The G9103 comes in a space saving TSOT-23-5 package.
Features
■ Low, 25μA No-Load Supply Current
■ Guaranteed 200mA Output Current
■ Dropout Voltage is 130mV @ 0.2A Load, VOUT 3.3V
■ Input voltage range: 2.4V~6V
■ 1.21V ~ 5.0V output voltage
■ Over-Temperature Protection and Short-Circuit Protection
■ Max. Supply Current in Shutdown Mode < 1μA
■ Stable with Low Cost Ceramic Capacitors
■ Output Discharge for Fast Turn-Off
Applications
■ Notebook Computers
■ Cellular Phones
■ PDAs
■ Digital still Camera and Video Recorders
■ Hand-Held Devices
■ Bar Code Scanners
