General Description

The G2282 is a monolithic, step-down, switch mode converter with built-in internal power MOSFETs. It achieves 2A continuous output current from a 2.6V to 6.0V input voltage with excellent load and line regulation. The Output voltage can be regulated to as low as 0.6V. At medium to heavy loads, the switching frequency is 2.2MHz. At light load, the device automatically enters PSM to maintain high efficiency.

The Constant-On-Time control scheme in G2282 provides fast transient response to be optimized over a wide range of loads and output capacitors. Thermal shutdown and cycle-by-cycle current limiting are used for protection.

The G2282 is available in an ADFN1.5X1.5-6 package.

Features

■ Efficiency Up to 97%

■ 26mΩ and 25mΩ Internal Power MOSFET

■ VIN Range 2.6V to 6V

■ Adjustable Output Voltage from 0.6V to 4V

■ Power Save Mode for Light Load Efficiency

■ Constant-On-Time Control Scheme Design for Fast Transient Response, Stability with MLCC Output Capacitor

■ 100% Duty Cycle for Lowest Dropout

■ 4uA Operating Quiescent Current

■ Output Discharge

■ Power Good Output

■ Cycle-by-Cycle Over Current Protection

■ Input Under Voltage Lockout

■ Output Under Voltage Protection (Hiccup)

■ Thermal Shutdown Protection

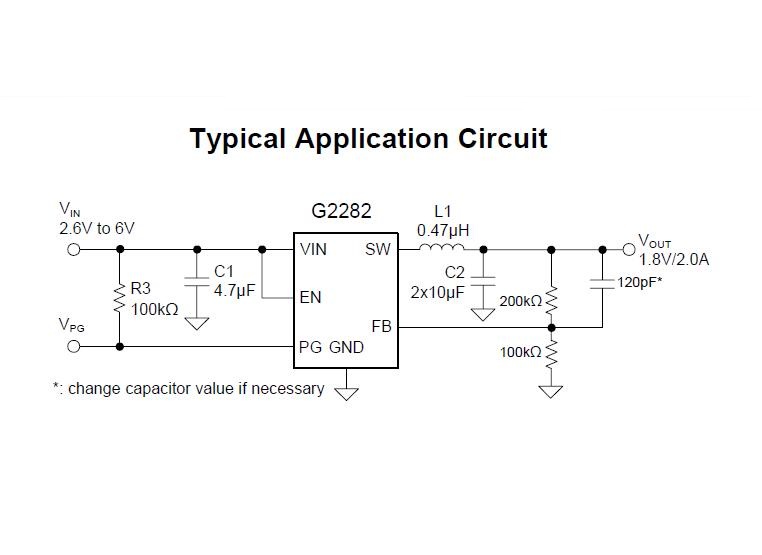

Applications

■ Portable and Mobile Devices

■ Wireless and Networking Devices

■ LCD TV Power Supply

■ Solid State Drive
