XB5358A0 赛芯微 一体化锂电池保护芯片

GENERAL DESCRIPTION

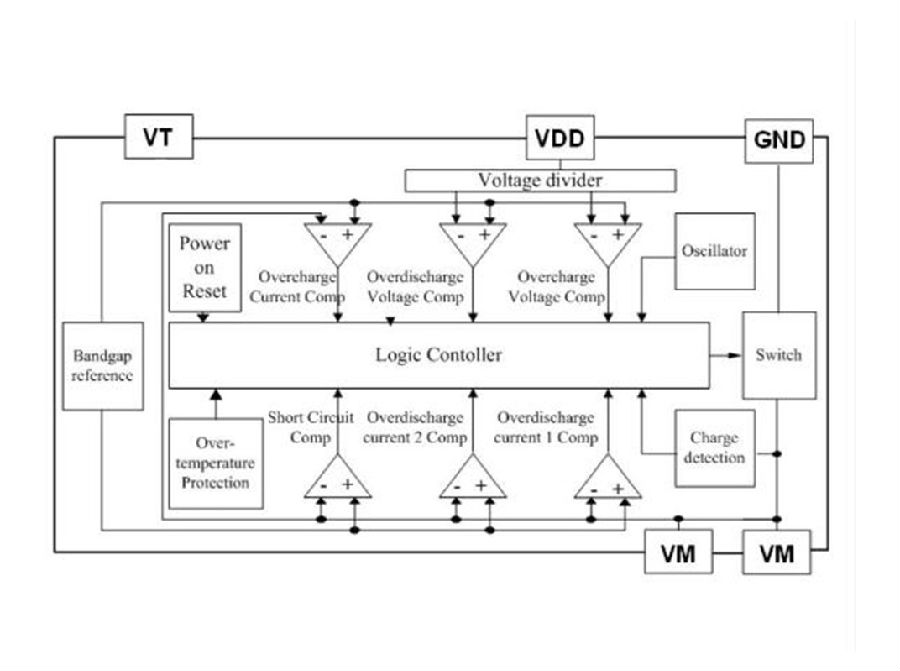

The XB5358 series product is a high integration solution for lithiumion/ polymer battery protection. XB5358 contains advanced power MOSFET, high-accuracy voltage detection circuits and delay circuits. XB5358 is put into an ultra-small SOT23-5 package and only one external component makes it an ideal solution in limited space of battery pack.

XB5358 has all the protection functions required in the battery application including overcharging, overdischarging, overcurrent and load short circuiting protection etc. The accurate overcharging detection voltage ensures safe and full utilization charging. The low standby current drains little current from the cell while in storage.

The device is not only targeted for digital cellular phones, but also for any other Li-Ion and Li-Poly battery-powered information appliances requiring longterm battery life.

ABSOLUTE MAXIMUM RATINGS

(Note: Do not exceed these limits to prevent damage to the device. Exposure to absolute maximum rating conditions for long periods may affect device reliability.)

■ VDD input pin voltage: -0.3 to 6V

■ VM input pin voltage: -6 to 10V

■ Operating Ambient Temperature: -40 to 85°C

■ Maximum Junction Temperature: 125°C

■ Storage Temperature: -55 to 150°C

■ Lead Temperature ( Soldering, 10 sec): 300°C

■ Power Dissipation at T=25°C: 0.4W

■ Package Thermal Resistance (Junction to Ambient) θJA: 250°C/W

■ Package Thermal Resistance (Junction to Case) θJC: 130°C/W

■ ESD: 2000V

FEATURES

● Protection of Charger Reverse Connection

● Protection of Battery Cell Reverse Connection

● Integrate Advanced Power MOSFET with Equivalent of 45mΩ RSS(ON)

● Ultra-small SOT23-5 Package

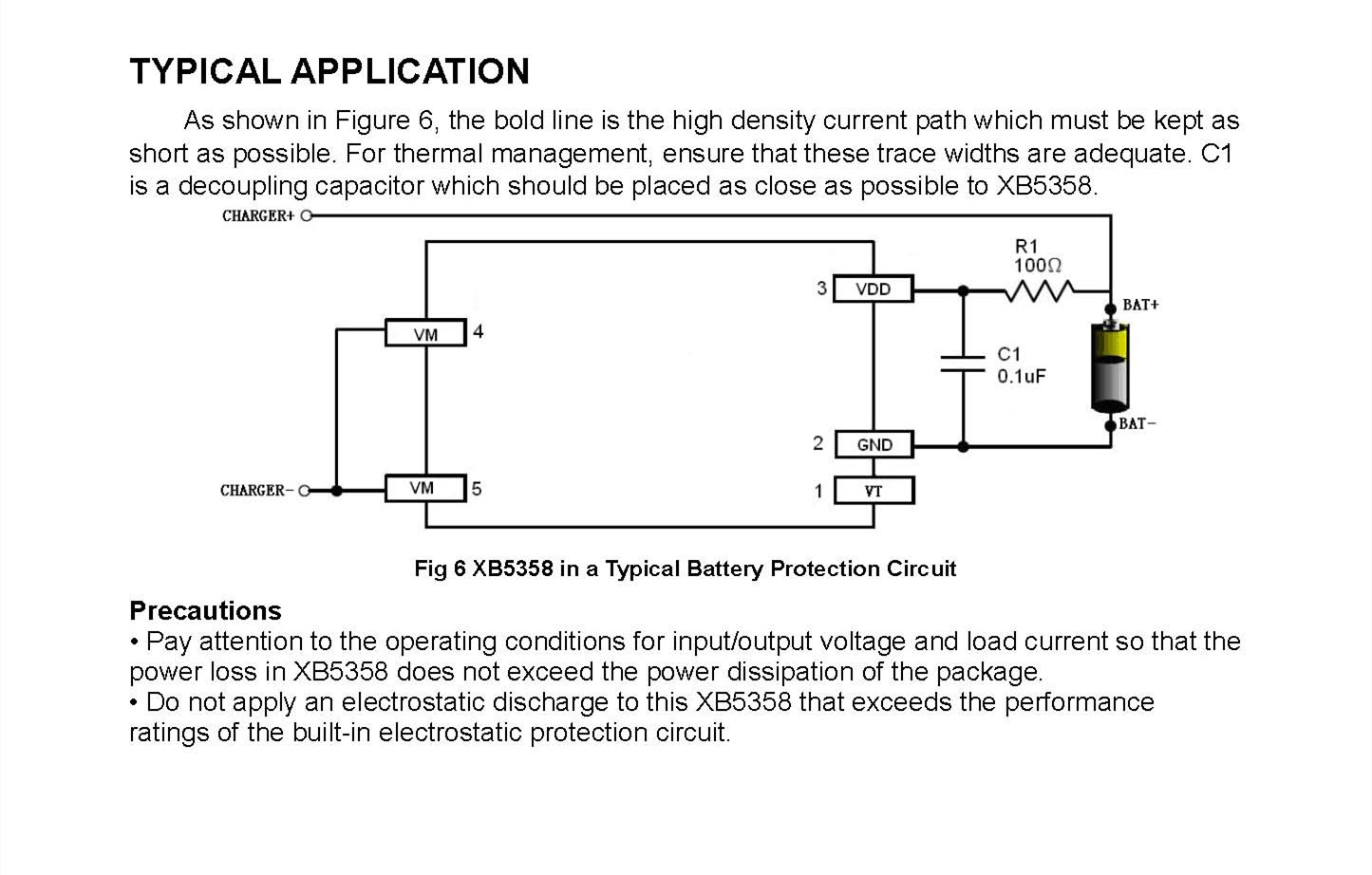

● Only One External Capacitor Required

● Over-temperature Protection

● Overcharge Current Protection

● Two-step Overcurrent Detection:

Overdischarge Current

Load Short Circuiting

● Charger Detection Function

● 0V Battery Charging Function

Delay Times are generated inside

● High-accuracy Voltage Detection

● Low Current Consumption

Operation Mode: 2.8μ A typ.

Power-down Mode: 1.5μ A typ.

● RoHS Compliant and Lead (Pb) Free

APPLICATIONS

One-Cell Lithium-ion Battery Pack

Lithium-Polymer Battery Pack
