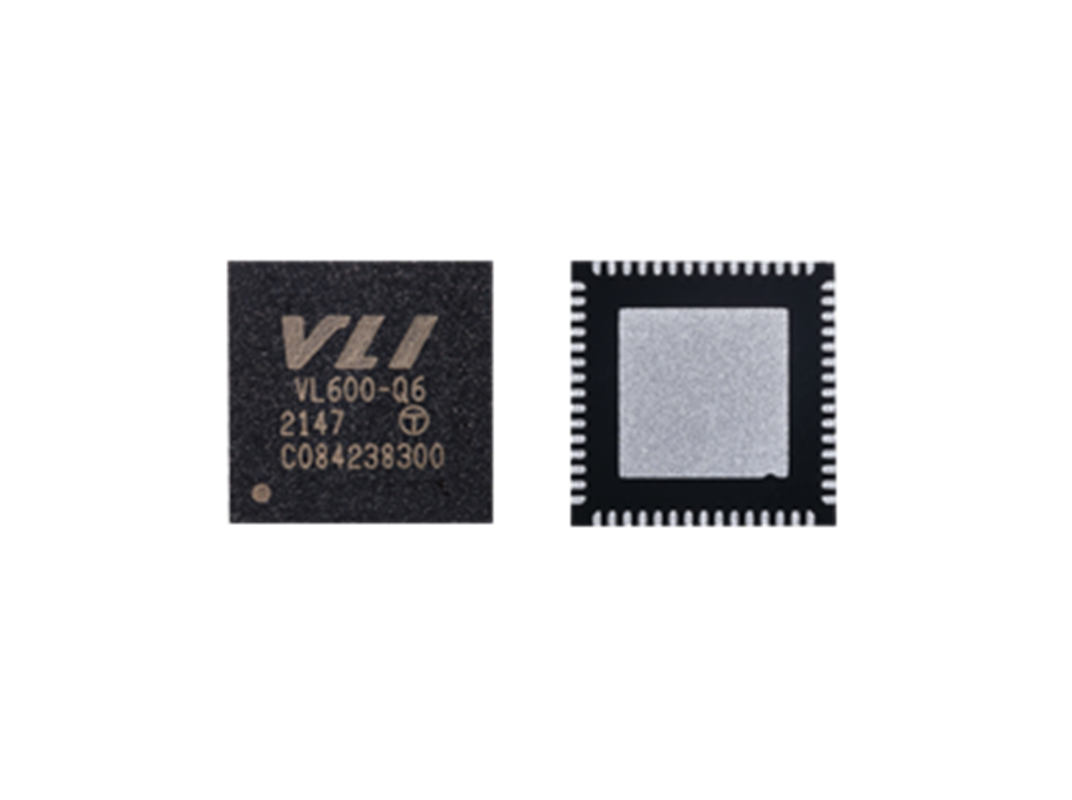

VL600-Q6 威盛芯片 科瑞芯电子深圳供应

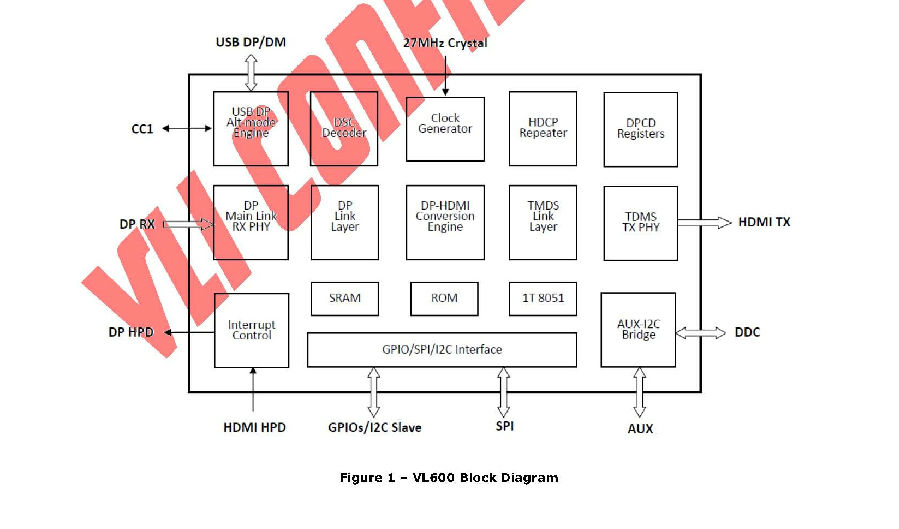

Product Features

■ DisplayPort 1.4a Receiver Interface

- Compliant to VESA DisplayPort Standard Version 1.4a

- DisplayPort 1, 2, and 4 lanes with RBR, HBR, HBR2, HBR3 data rates

- DPCD 1.4 data structure

- VESA Display Stream Compression Standard (DSC) V1.2a decoder with 1/2 slices and FEC

- Bridging DP AUX Channel interface to HDMI DDC interface for EDID Pass-through

- Supports VESA Monitor Control Command Set (MCCS) over AUX

- Supports color formats RGB 8/10/12 bpc and YCbCr 4:4:4/4:2:2/4:2:0 8/10/12 bpc

- RGB/YCbCr color space conversion

- YCbCr 444/422/420 downward conversion

- HDCP 2.3 and HDCP 1.4 repeaters with on-chip keys

■ HDMI 2.0b Source Interface

- Compliant to High-Definition Multimedia Interface Specification Version 2.0b

- TMDS data rate up to 6Gbps per channel

- Supports up to 3840x2160 @60Hz or 4096x2160 @60Hz under DP1.4 2-lane mode

- Supports color formats RGB 8/10/12 bpc and YCbCr 4:4:4/4:2:2/4:2:0 8/10/12 bpc

- Supports Static High Dynamic Range (HDR) meta data handling

- Audio output up to 8-channel 192KHz LPCM and compressed audio encoding formats

■ Buit-in VESA DP Alt-mode and USB Billboard Device

- Compliant to VESA DisplayPort Alt-Mode on USB Type-C Standard Version 2.0

- Compliant to USB Type-C Cable and Connector Specification Revision 2.0

- Compliant to USB Power Delivery Specification Revision 3.0 Version 1.2

- Built-in CC1 with Rd pull-down resistor and DP Sink Pin Assignment C for USB-C plug connector applications

- DP mode Discovery/Enter/Exit; DP configure, status update, sink connection detection

- Built-in USB Billboard that compliant to USB Device Class Definition for Billboard Devices Revision 1.21

- Integrated in-house USB 2.0 Full-speed PHY

■ Fast 8051 Macro Cell 80C32-Compatible Microcontroller

- Standard 1T 8051 instruction set with embedded Mask ROM and SRAM

- Supports firmware upgrade by externa! SPI fiash or sharing SPI flash with VLI Hub and/or PD controller

■ Clock, Power Supply and Power Management

- External 27 MHz crystal oscillator interface

- 1.2V core power supply and 3.3VI/O power supply

- Very low power operation when HDMI HPD is not detected (~25mW); perfect for USB-C portable dongle applications

■ GPIOs and I2C for Special Function and Control

- 4 GPIOs for application customization and one I4C slave interface

■ Physical

- QFN 60 green package (7x7x0.85 mm)

■ Certification

- USB-IF PD 3.0 Certification TID: 7019

■ Applications

- USB-C to HDMI dongle or Multi-function dongle by VESA DP Alt-mode

- USB4.0 to HDMI Multi-function dongle by USB4 DP tunneling
