钰泰系列 ETA4034D2I 锂电池充电器前端保护IC

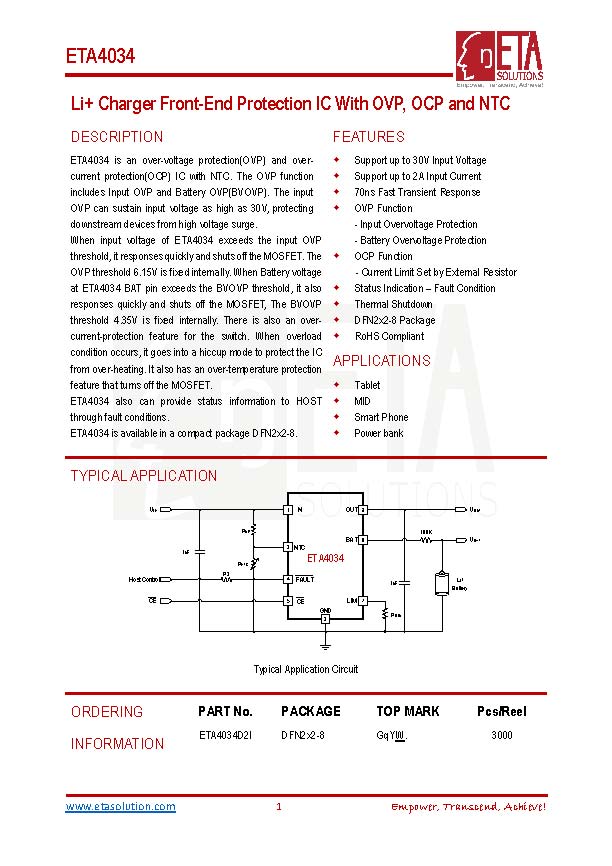

DESCRIPTION

ETA4034 is an overvoltage protection(OVP) and over-current protection(OCP) IC with NTC. The OVP function includes Input OVP and Battery OVP(BVOVP). The input OVP can sustain input voltage as high as 30V, protecting downstream devices from high voltage surge.

When input voltage of ETA4034 exceeds the input OVP threshold, it responses quickly and shuts off the MOSFET. The OVP threshold 6. 15V is fixed intermall. When Battery voltage at ETA4034 BAT pin exceeds the BVOVP threshold, it also responses quickly and shuts off the MOSFET, The BVOVP threshold 4.35V is fixed internally. There is also an over-current-protection feature for the switch. When overload condition occurs, it goes into a hiccup mode to protect the IC from over-heating. It also has an over-temperature protection feature that turns off the MOSFET.

ETA4034 also can provide status information to HOST through fault conditions.

ETA4034 is available in a compact package DFN2x2-8.

FEATURES

● Support up to 30V Input Voltage

● Support up to 2A Input Current

● 70ns Fast Transient Response

● OVP Function

- Input Overvoltage Protection

- Battery Overvoltage Protection

● OCP Function

- Current Limit Set by Extemal Resistor

● Status Indication - Fault Condition

● Thermal Shutdown

● DFN2x2-8 Package

● RoHS Compliant

APPL ICATIONS

● Tablet

● MID

● Smart Phone

● Power bank
