ZPCT2P5M331E 智威低电容器SZ Cap系列

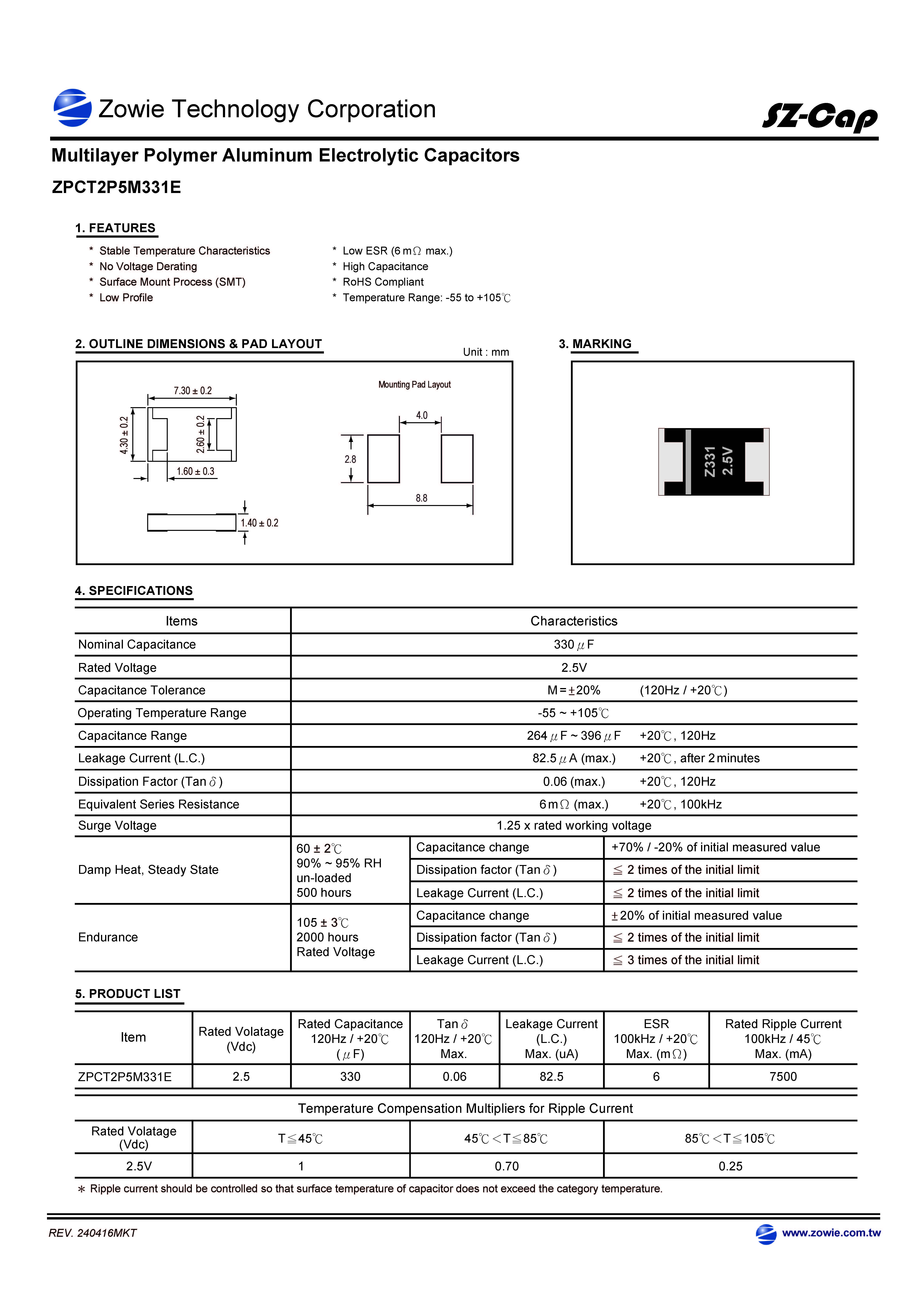

SPECIFICATIONS

* Nominal Capacitance: 330μF

* Rated Voltage: 2.5V

* Capacitance Tolerance: M = ± 20% (120Hz / +20℃)

* Operating Temperature Range: -55 ~ +105C

* Capacitance Range: 264μF ~ 396μF +20℃, 120Hz

* Leakage Current (L .C.): 82.5μA (max.) +20℃, after 2 minutes

* Dissipation Factor (Tan 8):  0.06 (max.) +20C, 120Hz

* Equivalent Series Resistance: 6mΩ (max.)+20C, 100kHz

* Surge Voltage: 1.25 x rated working voltage

* Damp Heat, Steady State

Capacitance change: +70% 1 -20% of initial measured value

Dissipation factor (Tan δ): ≦ 2 times of the initial limit

Leakage Current (L.C.): ≦ 2 times of the initial limit

* Endurance

Capacitance change: +20% of initial measured value

Dissipation factor (Tan δ): ≦ 2 times of the initial limit

Leakage Current (L.C.): ≦ 3 times of the initial limit
