PT6967 PCT普诚科技 LED驱动IC
DESCRIPTION

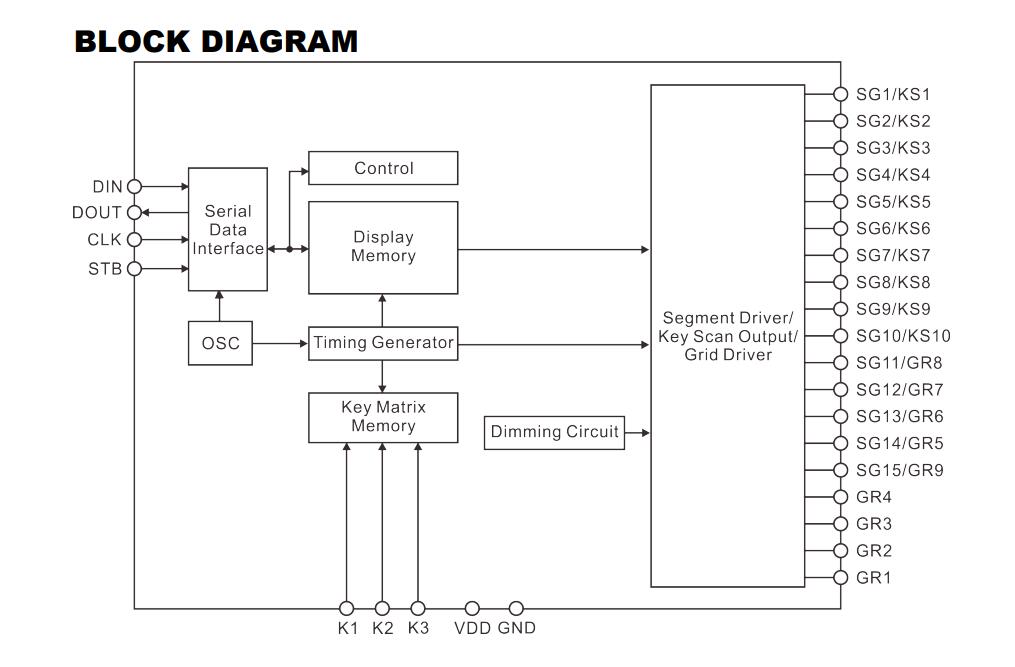

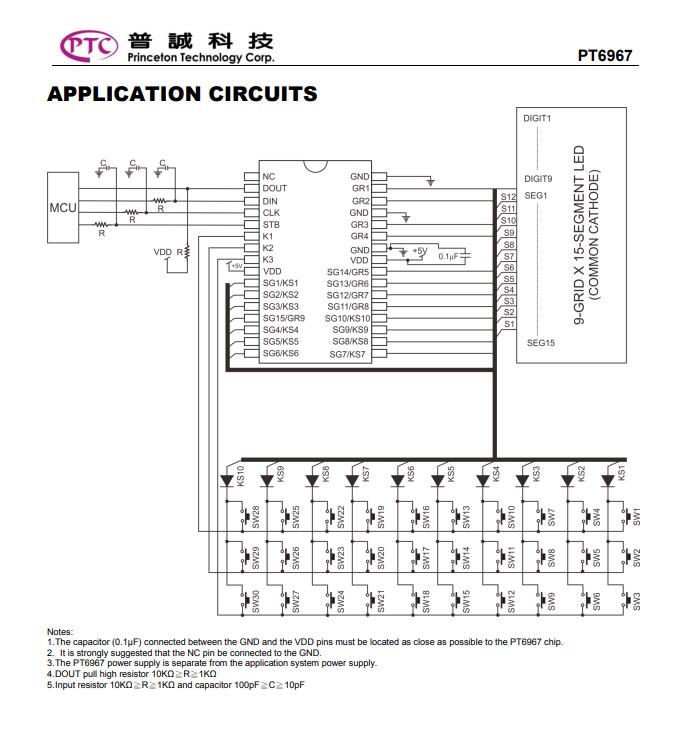

PT6967 is an LED Controller driven on a 1/5 to 1/8duty factor. 10 segment output lines, 4 grid outputlines, 5 segment/grid output lines, one displaymemory, control circuit, key scan circuit are allincorporated into a single chip to build a highly reliableperipheral device for a single chip microcomputer.Serial data is fed to PT6967 via a four-line serialinterface. Housed in a 32-pin SOP and QFN, PT6967pin assignments and application circuit are optimizedfor easy PCB Layout and cost saving advantages.
FEATURES
● CMOS technology
● Low power consumption
● Multiple display modes (15 segment, 4 Grid to 10 segment, 9 Grid)
● Key scanning (10 x 3 Matrix)
● 8-Step dimming circuitry
● Serial interface for Clock, Data Input, Data Output, Strobe Pins and low voltage operation ability when user&＃39;s MCU power supply is 3.3V
● Available in 32-pin SOP and QFN
APPLICATIONS
● Micro-computer Peripheral Device
● VCR Set
● Combo Set
