普诚代理商供应 PT16941 8通道LED驱动器
DESCRIPTION
The PT16941 is a serial-in parallel-out controlledLED driver with 35V output voltage rating.With the input of 3-line serial data, it turns the 8ch opendrain output on/off.Due to its compact size, it is optimal for small space.
FEATURES
● Open Drain Output
● 3-line Serial Control + Enable Signal

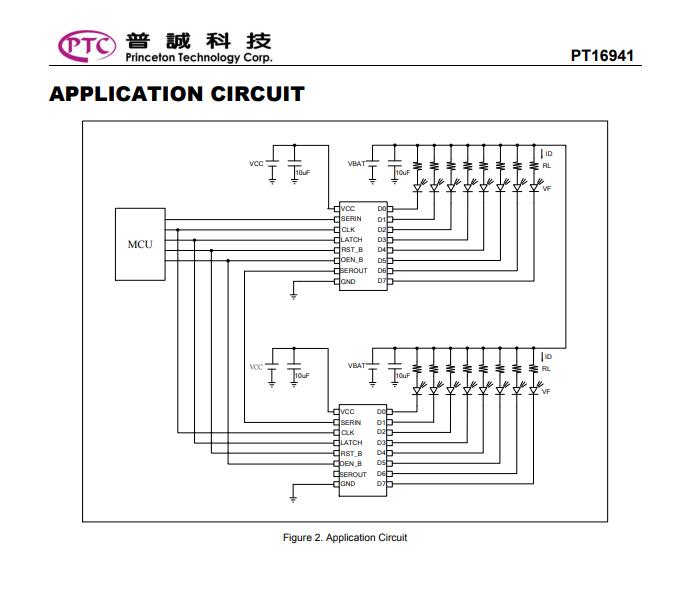

● Cascade Connection Compatible
● TSSOP-16 / SOP16 (150mil) Package
● Internal 8ch Power Transistor Output Slew Rate Typical 20V/μs(for Low EMC Noise)
KEY SPECIFICATIONS
● Input voltage range: 3.0V to 5.5V
● Output voltage range: 35V (Max.)
● DC Output Current (per CH): 50mA(Max.)
● Output ON Resistance: 6Ω(Typ.)
● Standby current: 0μA (Typ.)
● Operating temperature range: -40℃ to +105℃
APPLICATION
● For indicator of Cluster Panel
