PT5139 普诚科技 双H桥电机驱动器
DESCRIPTION
The PT5139 is a dual H-bridge motor driver which candrives two brushed DC motors or a single bipolarstepper motor, solenoids or other inductive loads. Eachbridge driver includes a PWM current regulationcircuitry to limit the winding current. The H-bridgedriver is consists by all of N-channel MOSFETs.The device have built-in protection features, includesunder-voltage lockout (UVLO), over current protection(OCP) and thermal shutdown (TSD). A fault flag outputis available to indicates the OCP or TSD conditions ishappens.

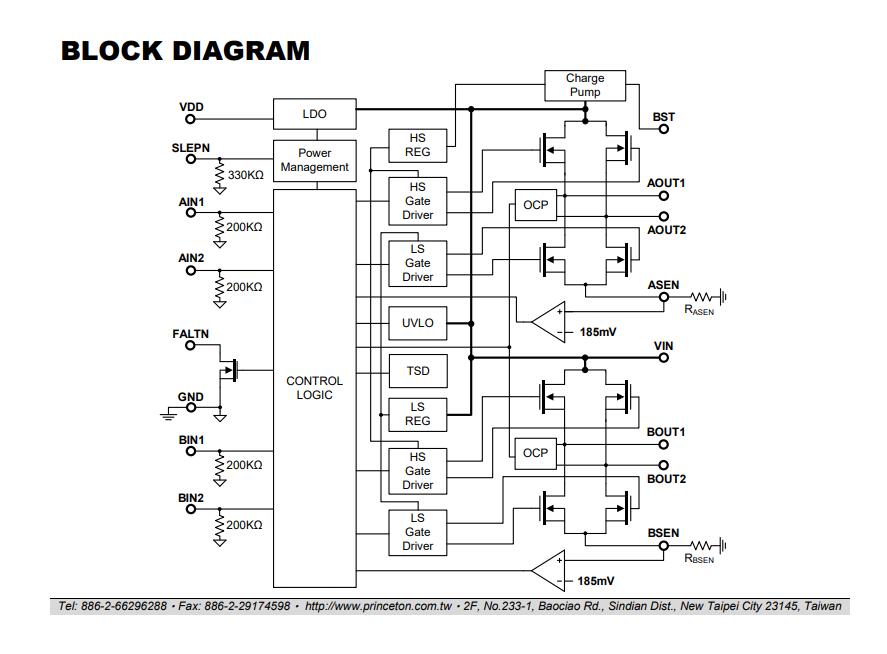

FEATURES
● Wide Supply Voltage Range: 2.7V to 15V
● Dual H-bridge Drivers, drivers two brushed dc motor or single bipolar stepping motor
● MOSFET RDS(on) Resistance HS + LS = 1060mQ
● Output Current : 700mA (HTSSOP package)
● Intemal PWM Current Regulation Function
● Low Quiescent Current: 1. 5mA
● Low Sleep Current: <1μA
● Buitin Protection Circuits; Thermal Shutdown (TSD), Under Voltage Lock-Out (UVLO) and Over Current Protection (OCP) functions.
● Fault Indicates Output (FALTN)
● Multiple Packages Available:
- 16 pins QFN, 4.0mm x 4.0mm with thermal pad.
- 16 pins HTSSOP, 5.0mm x 6.4mm with thermal pad.
- 16 pins TSSOP, 5.0mm x 6.4mm

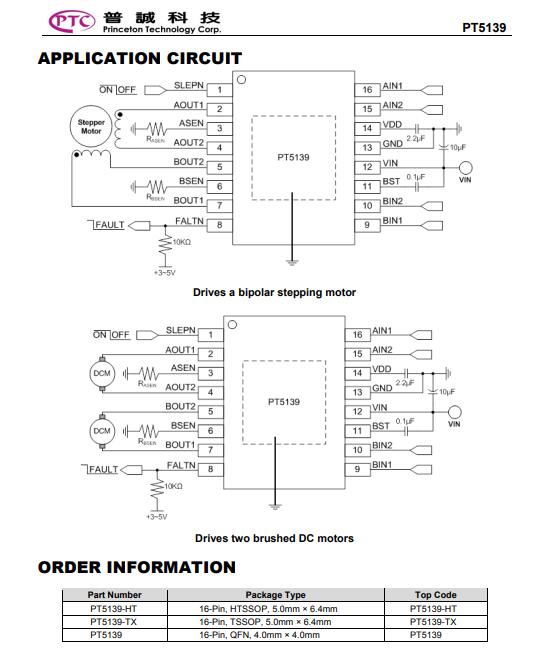

APPLICATIONS
● POS Printers
● Video Security Camera
● Robotics
● Battery Powered Toys
