原厂原装 PT4308 普诚科技OOK/ASK接收机
DESCRIPTION

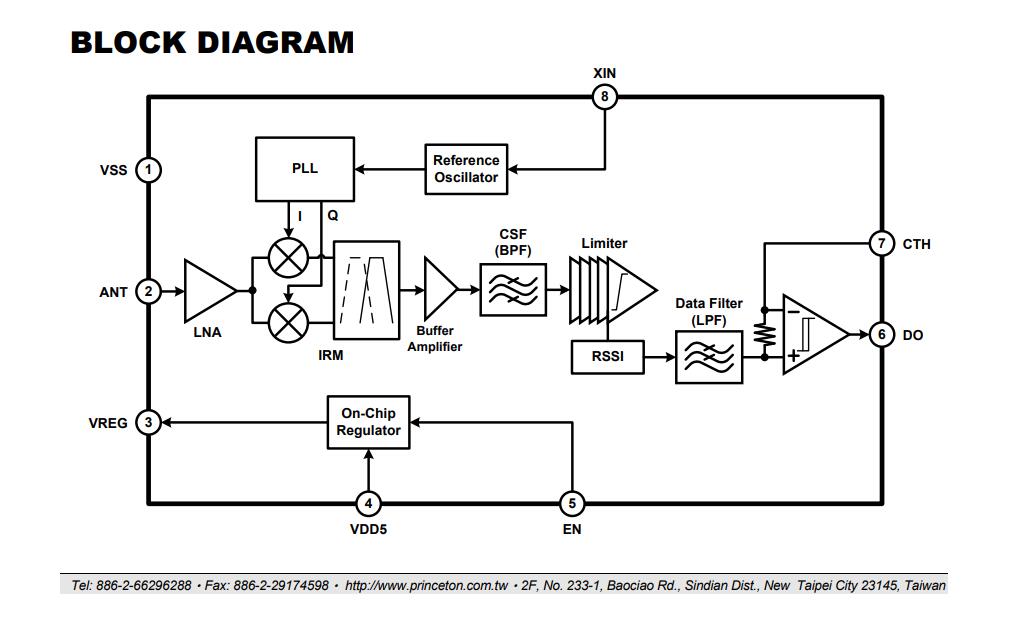

The PT4308 is a compact, fully integrated OOK／ASKreceiver with ±4 KV ESD （HBM）protection for 433.92 MHzfrequency band and requires few external components.The PT4308 consists of a low-noise amplifier （LNA）, animage-rejection mixer （IRM）, a built-in channel-select filter（CSF）, an OOK／ASK demodulator, a data filter, and adata slicing comparator. The local oscillator （ LO ）sub-system incorporates a monolithic VCO, a ÷32 feedbackdivider, a loop filter and a fast start-up reference oscillator toform a complete phase-locked loop-based frequencysynthesizer for single channel applications.
The PT4308 is available in an 8-pin SOP package and isspecified over the temperature range from –40 to +85 °C.
FEATURES
● Normal operating of 4.3mA at 433.92 MHz
● Requires few external components
● Achieves sensitivity of —114dBm (peak ASK signal level)
● Supply voltage range: 2.1 to 5.5V
● Supports data rates up to 10Kb/s
● Wide input dynamic range with automatic gain control handling
● Image-rejection ratio of 25dB
● ESD protection levels up to +4KV HBM, +400V MM and +1KV CDM
APPLICATIONS
● Automotive remote keyless entry (RKE)
● Remote control
● Garage door and gate openers
● Suitable for applications that meet either the European ETSI-300-220 or the North American FCC (Part 15) regulatory standards
