G546B2P11Uf 致新USB电源管理芯片

Features

■ 87mΩ RDS(ON) (G546X1, G546X2) and 72mΩ RDS(ON) (G546X3, G546X4)

■ Available with 5 Versions of Current Limits with Foldback

■ Operating Range:2.7V to 5.5V

■ 400μS Typical Rise Time

■ Under voltage Lockout

■ 65μA Quiescent Supply Current

■ 1μA Maximum Shutdown Supply Current

■ Logic Level Enable Pin, Available with Active-High or Active-Low Version

■ No Reverse Current when Power Off

■ Deglitched Open-Drain Over-Current Flag Output (OC )

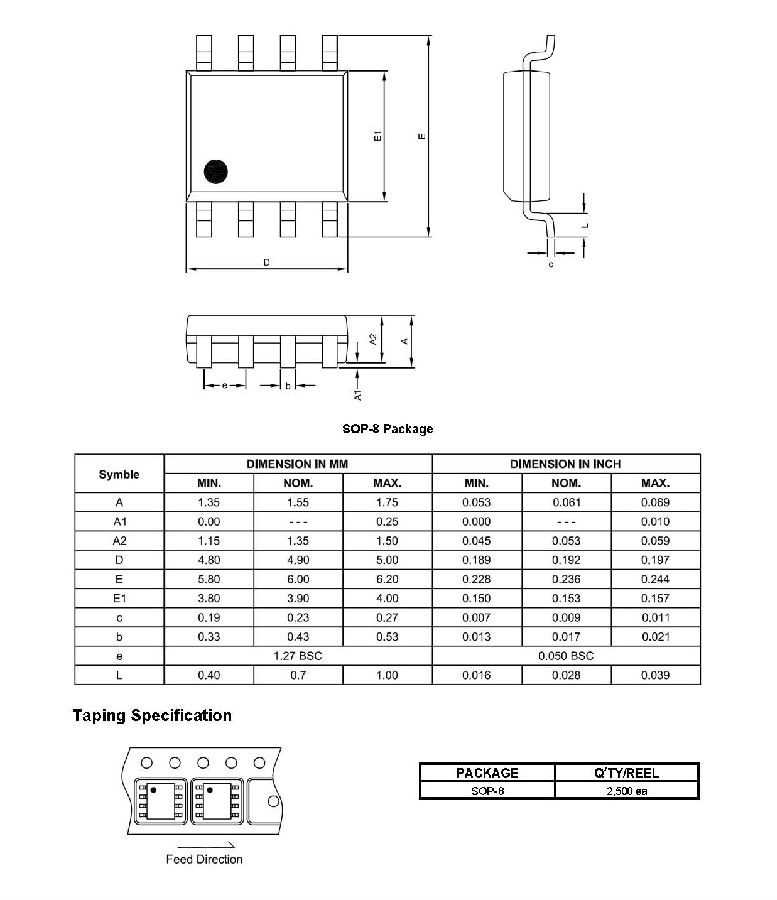

■ SOP-8 Package,MSOP-8 , MSOP-8 (FD) and TDFN3X3-8 Package

■ UL Approved_#E232223

■ Nemko IEC 60950-1 CB/CCA_scheme Certification Report #67291

Applications

■ High-Side Power Protection Switch

■ USB Power Management

■ USB Host and Self-Powered Bubs

■ USB Bus-Powered Hubs

■ Hot Plug-In Power Supplies

■ Battery-Charger Circuits
