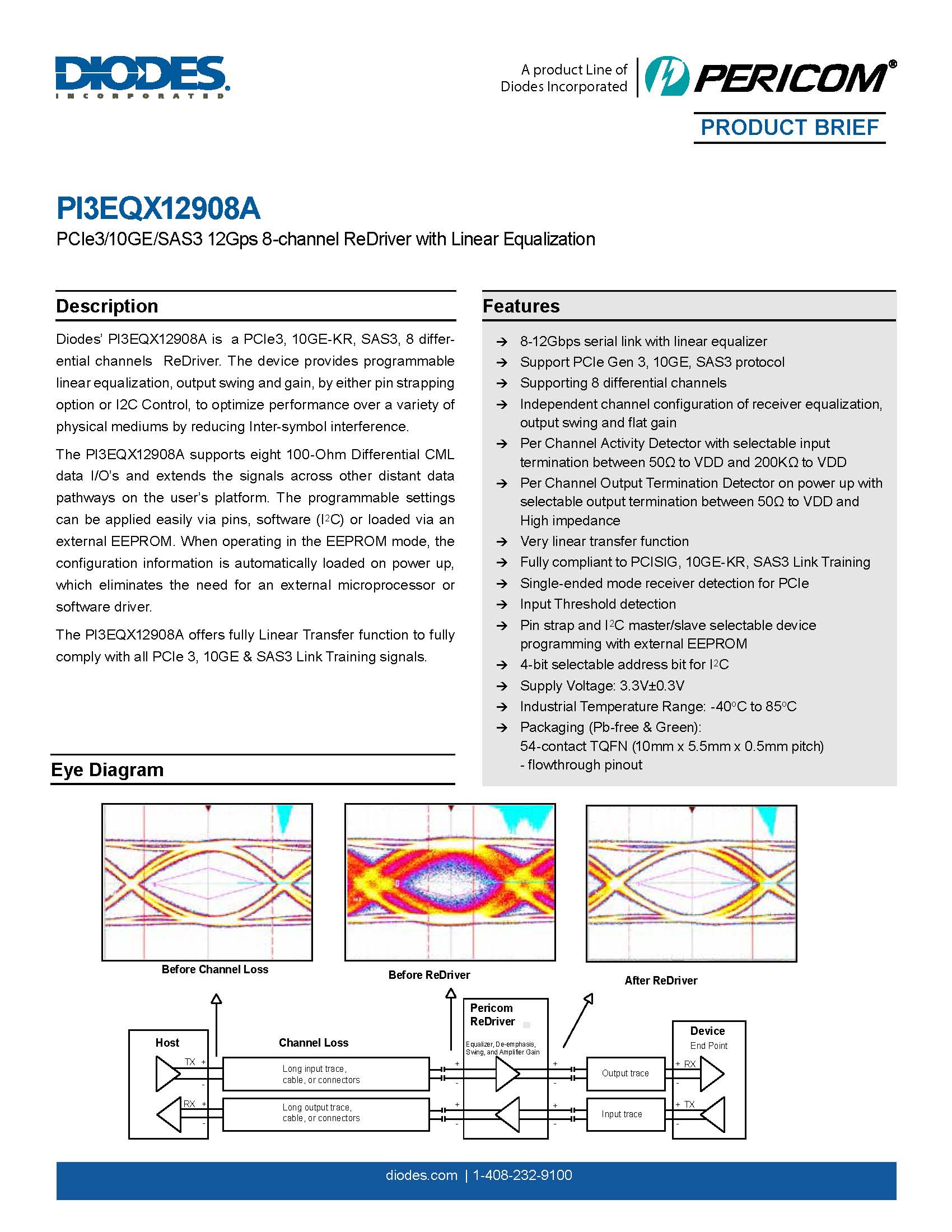

供应DIODES达尔 PI3EQX12908A2ZFEX 线性均衡再驱动器

Features

● 8-12Gbps serial link with linear equalizer

● Support PCle Gen 3,10GE,SAS3 protocol

● Supporting 8 differential channels

● Independent channel configuration of receiver equalization, output swing and flat gain

● Per Channel Activity Detector with selectable input termination between 50Q to VDD and 200KΩto VDD

● Per Channel Output Termination Detector on power up with selectable output termination between 50Q to VDD and High impedance

● Very linear transfer function

● Fully compliant to PCISIG,10GE-KR, SAS3 Link Training

● Single-ended mode receiver detection for PCle

● Input Threshold detection

● Pin strap and 12C master/slave selectable device programming with extemal EEPROM

● 4-bit selectable address bit for 1P2C

● Supply Voltage:3.3V±0.3V

● Industrial Temperature Range:-40°C to85°℃

● Packaging (Pb-free & Green):

54-contact TQFN (10mm x5.5mm x0.5mm pitch) - flowthrough pinout
