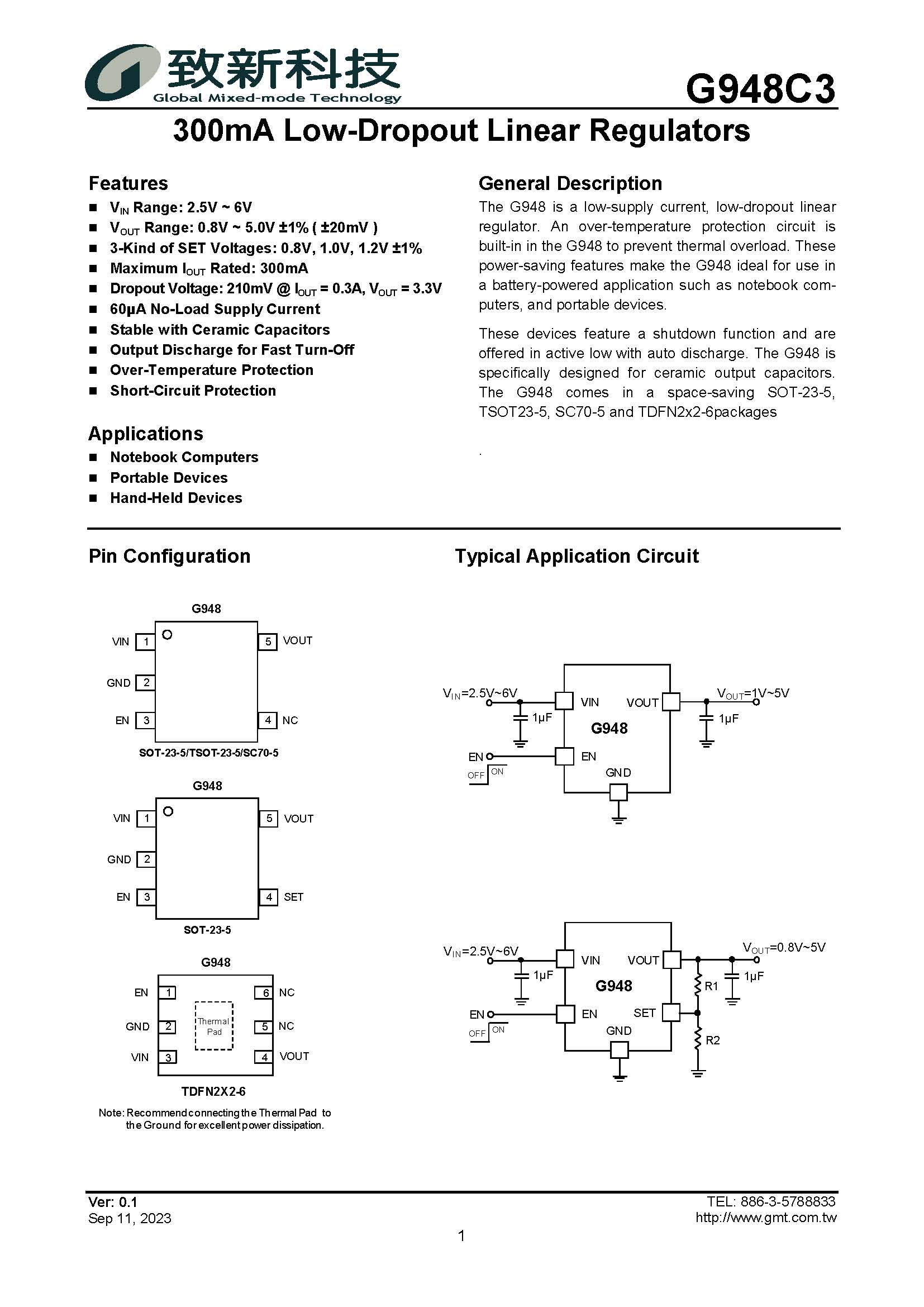

致新科技 G948C3180TA1G 低压差线性稳压器 SC70-5封装

Absolute Maximum Ratings

VIN to GND: -0.3V to +6.5V

VOUT to GND: -0.3V to (VIN + 0.3V)

EN to GND: -0.3V to (VIN + 0.3V)

Operating Temperature Range: -40°C to +85°C

Junction Temperature: 150°C

Storage Temperature Range: -55°C to +150°C

Reflow Temperature (soldering, 10sec) : 260°C

Recommendation operation conditions

VIN Input voltage: 2.5~6.0 V

VOUT Output voltage: 0.8~5.0 V

VEN Enable Voltage: 0~VIN V

IOUT Output current: 0~0.3 A

CIN Input capacitance, X7R MLCC or low ESR cap: 1μF

COUT Output capacitance, X7R MLCC: 1~10μF

Applications

● Notebook Computers

● Portable Devices

● Hand-Held Devices
