| 型号(PratNumber) | CP2022 |
| 数量(QTY.) | 12000 |
| 厂家(Brand) | COPO |
| 封装(Package) | QFN3x3-16 |
| 批号(DC.) | 23+ |
| 联系人(contact) | 颜先生/William |
| 电话(contact) | 0755-82170220,21001680 |
| PDF(PDF.) |
|
| 询价(Inquire) |

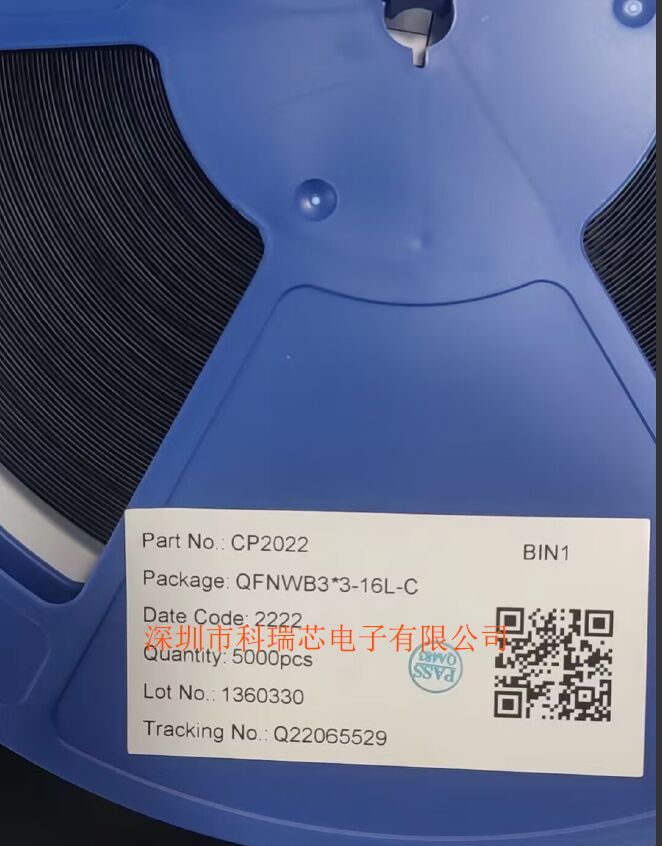

CP2022 QFN3x3-16
常备现货，热销~~
Features：
Integrated Wireless Power Supply Receiver
Solution
High Efficiency Full Synchronous Rectifier.
WPC Qi V1.3 Compliant communication Control
Single IC Required Between RX Coil and Output
WPC Qi V1.3 FOD Function
High Accurate Current Sense
Easy to debug for certification by Resistance
Current limit by external programming resistor
Dynamic Rectifier VRECT
Improve the Load Transient Response
Optimize the dynamic efficiency for full load output
Rectifier Overvoltage Clamp (VOVP=18V)
Support 18-V Maximum Input
Over Temperature, Over Voltage and Over
Current Protection
LED Output Indication
Charging Complete and Fault Host Control
VOUT with High Voltage Protection and Reverse current prevention
QFN 3mm*3mm 16Pin Pack
Specially optimized for small power and small or irregular coil applications
Applications
Wearable product
Hand-held Device
Portable Products(Audio, Media, Headsets)
