| 型号(PratNumber) | ETA2850S2G |
| 数量(QTY.) | 45000 |
| 厂家(Brand) | ETA |
| 封装(Package) | SOT23-6 |
| 批号(DC.) | 23+ |
| 联系人(contact) | 颜先生/William |
| 电话(contact) | 0755-82170220,21001680 |
| PDF(PDF.) |
|
| 询价(Inquire) |
ETA2850S2G SOT23-6

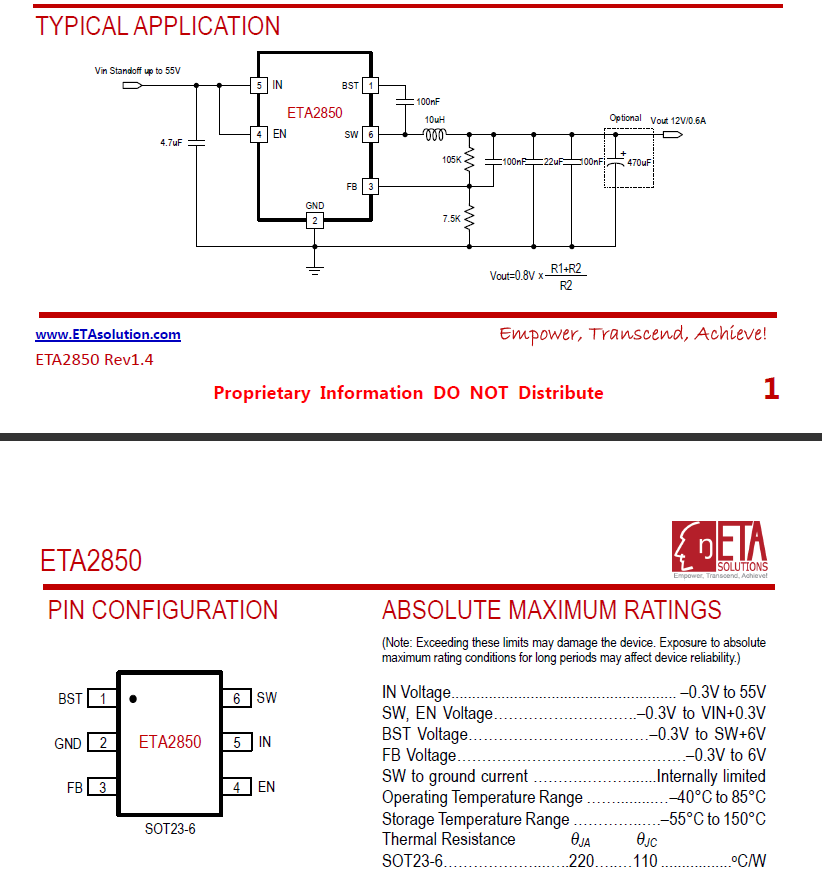

ETA2850S2G 55V输入隔离电压，0.6A，2MHz同步降压转换器芯片
产品说明
▪ 0.1% Output Voltage Ripple
▪ Wide Input Operating Range from 4V to 42V
▪ Standoff Input Voltage: 55V
▪ High Efficiency at 24V In 12V Out: Up to 87%
▪ High Efficiency PFM mode at light load
▪ Capable of Delivering 0.6A
▪ 2MHz Fixed Switching Frequency
▪ No External Compensation Needed
▪ Adaptive COT Control
▪ Logic Control Shutdown
▪ Thermal shutdown and UVLO
▪ Available in SOT23-6 Package
APPLICATIONS
▪ Smart Meters
▪ Industrial Applications
▪ Automotive Applications
