| 型号(PratNumber) | G1582RD1U |
| 数量(QTY.) | 24000 |
| 厂家(Brand) | GMT |
| 封装(Package) | TDFN3X3-8 |
| 批号(DC.) | 23+ |
| 联系人(contact) | 颜先生/William |
| 电话(contact) | 0755-82170220,21001680 |
| PDF(PDF.) |
|
| 询价(Inquire) |
Rail-to-Rail Operational Amplifiers --G1582RD1U
General Description
The G1582 consists of one independent, high gain,
internally frequency compensated operational amplifiers
which was designed to operate from a single
power supply over a wide range of voltages. Operation
from split power supplies is also possible. The input
common mode range of the G1582 can be beyond the
rails, and the G1582 is with rail-to-rails output voltage
swing. The quiescent current is 2.2mA, typically.
The G1582 also feature fast slewing and settle-
times, as well as high output drive capability of
source 1300mA /sink 850mA. These features make
this amplifier ideal for use as reference buffers for
TFT-LCD. Other applications include battery power,
portable devices, and anywhere low power consumption
is important.

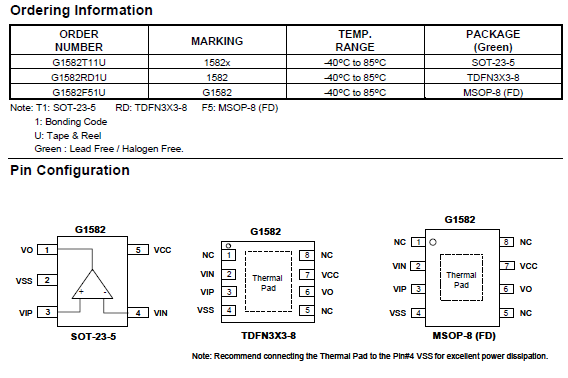

The G1582 is housed in a SOT-23-5, TDFN3X3-8 &
MSOP-8 (FD) package.
Applications
Portable Equipment
LCD-TV Equipment
Battery-Powered Equipment
ASIC Input or Output Amplifier
Low Power/Low Voltage Applications
