| 型号(PratNumber) | IT6563 |
| 数量(QTY.) | 12000 |
| 厂家(Brand) | ITE |
| 封装(Package) | QFN-56 |
| 批号(DC.) | 最新 |
| 联系人(contact) | 颜先生/William |
| 电话(contact) | 0755-82170220,21001680 |
| PDF(PDF.) |
|
| 询价(Inquire) |

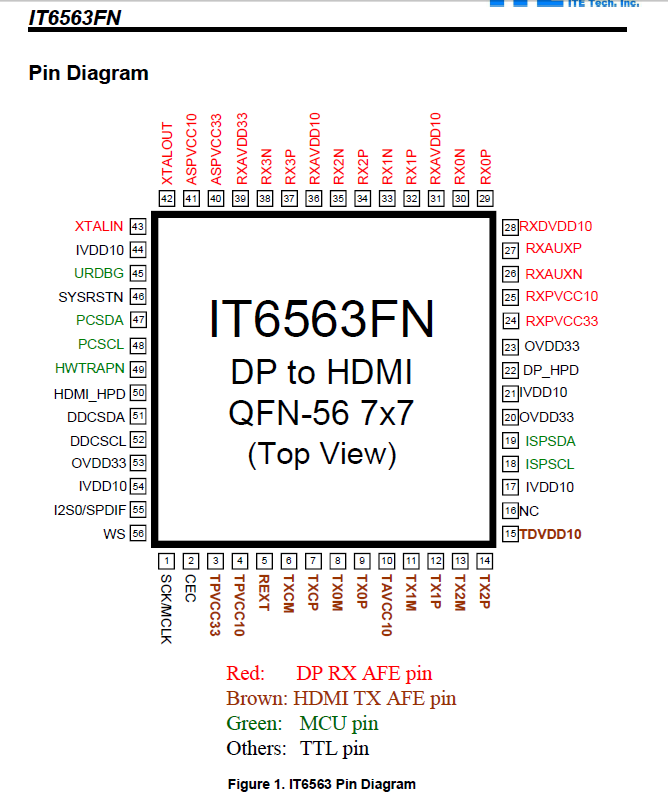

IT6563
Single Chip 4 Lane DisplayPort1.2 to HDMI2.0 Converter with
Embedded MCU
VL103+IT6563：Type-C转HDMI 科瑞芯公司热销！
2. Features
2.1 DisplayPort Receiver
Compliance with DisplayPort Specification V1.2a at 1.62/2.7/5.4 Gbps data rate (Low bit
rate/High bit rate/High bit rate 2)
Support flexible 1/2/4 lanes configurations; Full 21.6Gbps data rate support (4 lanes at
5.4Gbps)
Support DPCD Rev.1.2
Support metadata transport for static High Dynamic Range (HDR)
Support HDCP 1.3/2.2 with HDCP key embedded
Support MCCS over AUX
Support 3D display left/right field/frame
Support Spread Spectrum Clocking up to 0.5% down-spread to reduce EMI
Bi-direction Color Space Conversion (CSC) between RGB and YCbCr color spaces with
programmable coefficients.
Support 8-channel, uncompressed LPCM I2S audio with sample rates of 32~192 kHz and
sample sizes of 16~24 bits, and HBR audio.
Automatic loss of signal detection for Link management
Intelligent, programmable power management
Embedded two blocks EDID RAM to saving BOM cost
Compliance with “DP only” or “DP++” source device
